Adjustable Misting Nozzles For Hand Held Sprayer

Hand-held sprayer is kind of economical solution for indoor disinfection and decontamination. The electrical sprayer consists of disinfectant tank, inbuilt battery with charging socket, manual trigger, mini pump and misting nozzle. The original model of hand-held sprayer is used for cleaning and watering application for residential housed. The re-designed hand-held sprayer with more corrosion resistant components and finer misting nozzles is suitable for residential disinfection and decontamination. According to this requirement, a series of misting nozzles are designed by us for this application.




Design Feature

Tailor-made nozzles to match the pump of the sprayer
Specially designed adjustable nozzle can be twisted by hand to produce different spray performance, and therefore match different usage scenarios
Fine mist and coarse stream can be produced by one nozzle

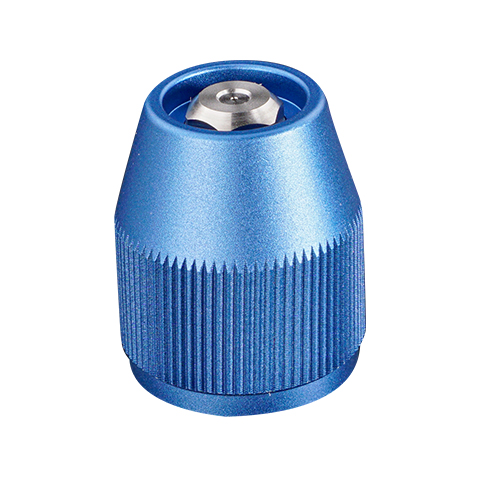

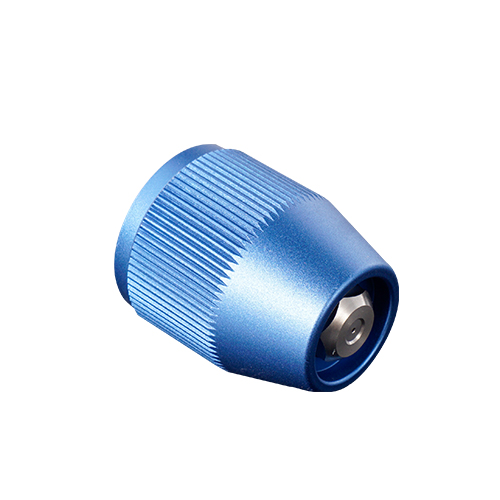

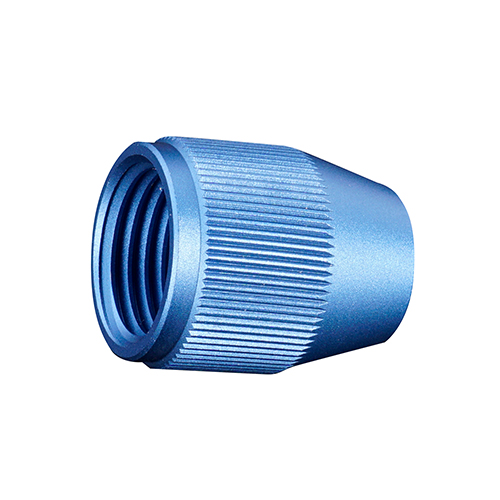

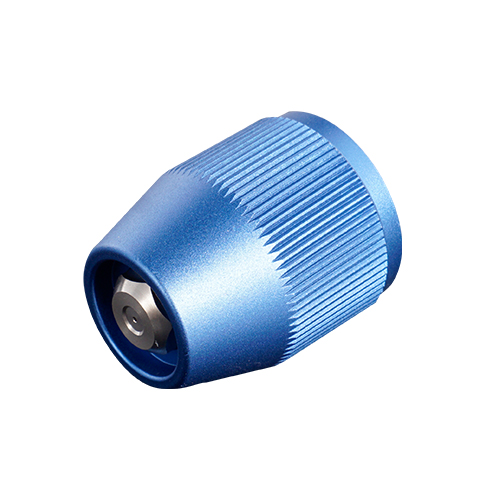

Anodized aluminum housing and stainless-steel material nozzle for better corrosion resistance and long life


Performance Data -Non Adjustable Misting Nozzle

Model Code	Spray angle (°)	Flow rate (ml/min) @ 6bar	Droplet size (SMD, μm)	Spray distance (cm)
MT-M-80100	60	100	80	150

Spray distance is obtained in laboratory under testing pressure 6bar.
The specifications of the nozzles are tailor-made according to flow rate-pressure chart of the pump selected.


Performance Data - Adjustable Misting Nozzle

Model Code	Spray angle (°)	Flow rate	Droplet size	Spray distance (cm)
MT-M-80100	60	100 ml/min	Fine, about 80 microns	150
	30	180 ml/min	Coarse	250
	15	N/A	N/A	300

Spray distance is obtained in laboratory under testing pressure 6bar.
The specifications of the nozzles are tailor-made according to flow rate-pressure chart of the pump selected.
For more information, please contact our sales engineer.


Typical Application in Disinfection and Sterilization

You can refer to :……… for more information about the hand-held sprayers for disinfection and sterilization.
You are welcome to contact us for further inquiry!
