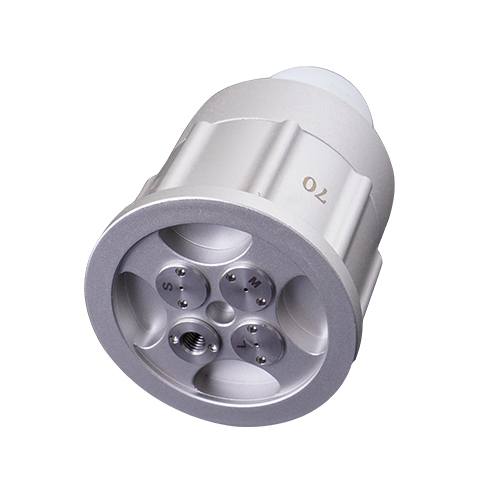

For some sprayers in order to match different usage scenarios of disinfection & decontamination some 3 in 1 spray gun or 4 in 1 spray gun are designed. There are multi-nozzles with different flow rates spray angles spray distance and droplets size assembled on the spray tip and when twisting the spray tip the user can switch to different functional modes. For example in home or office mode smaller flow rates and droplets are better to prevent from over-wetting meanwhile in public area bigger flow rates and droplets are preferred for higher efficiency and enough disinfection intensity.


Design Feature

1. Very compact structure design to match the 4 in 1 nozzle
2. Different misting nozzles with different spray performance to match different usage scenarios
3. An emptying nozzle available for expel the air in the pipe and pump.
4. Stainless steel material for better corrosion resistance and long life
5. O-ring on the nozzle for seal and quick replacement

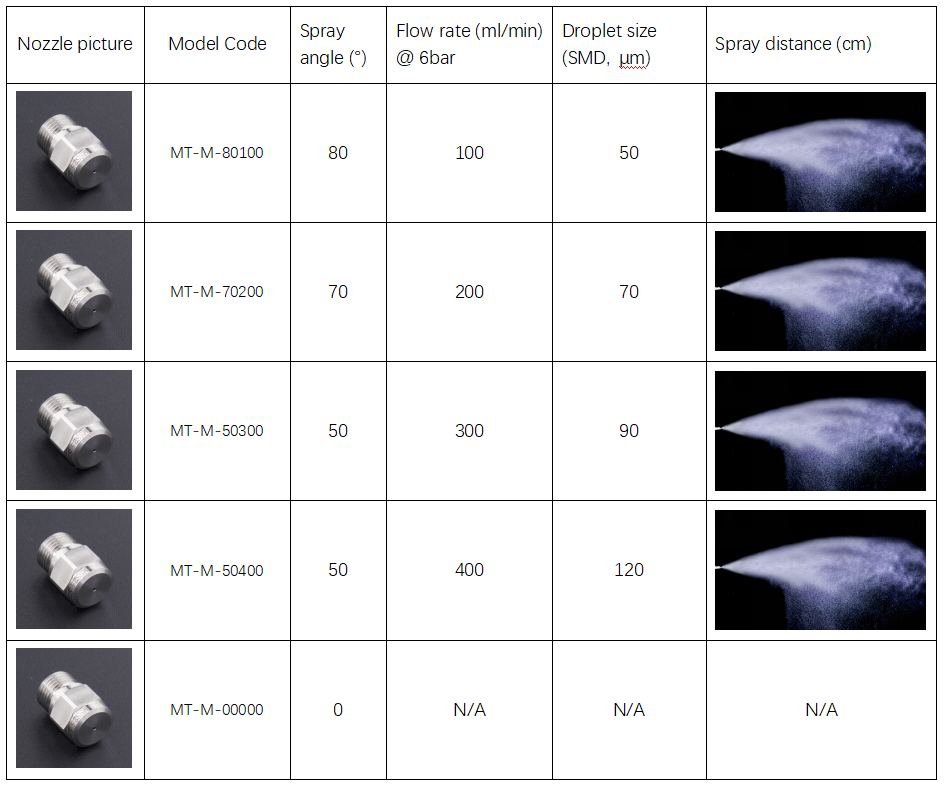

Performance Data

Spray distance is obtained in laboratory under testing pressure 6bar.
The specifications of the nozzles are tailor-made according to flow rate-pressure chart of the pump selected.
For more information please contact our sales engineer.

Typical Application in Disinfection and Sterilization

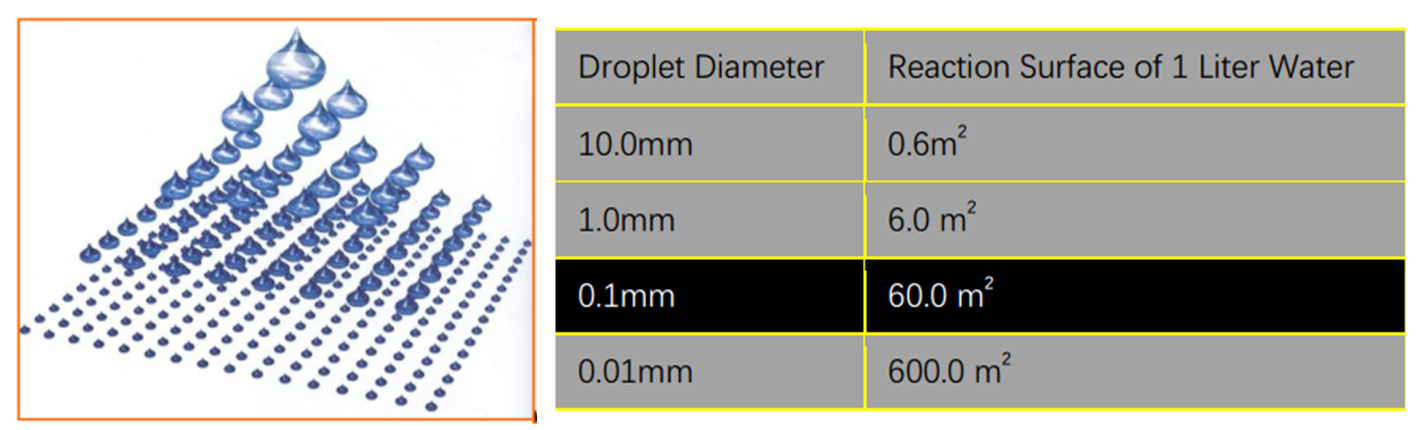

The misting nozzles can produce small droplets. The smaller droplet size the larger reaction surface. That is why the droplet size make a difference! There is also rich choice of flow rate and spray angle for misting nozzle which make it very suitable as candidate for disinfection and sterilization applications. Proper choice of misting nozzles and pumps can get your expected performance of the sprayers. The combination of misting nozzles or flat fan spray nozzles and carefully designed spray gun which have different functional modes make the multi-nozzles spray tips are able to match different usage scenarios. based on this designing ideas some 3 in 1 nozzles or 4 in 1 nozzles for the sprayer are produced. Since only one pump to supply all the nozzles it must be careful when match the nozzle and pump. Please refer to Advices on Selection of Misting Nozzle and Pump for Sterilizing Sprayers for more information.
