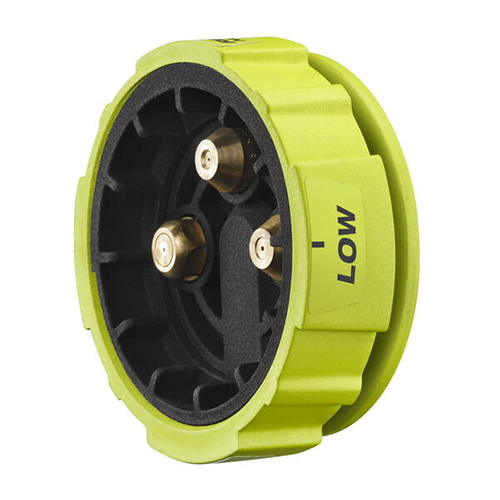

For some sprayers, in order to suitable for a variety of different applications, some 3 in 1  adjustable nozzle selector are designed. There are multi-nozzles with different flow rates, spray distance and droplets size assembled on the spray tip. The 3 in 1 adjustable nozzle selector allows you to choose from multiple spray patterns, the user can get three different functional modes when twisting the nozzle to select between Low, Medium, and High.


Product Feature：
Different misting nozzles with different spray pattern to match different application.
Space-saving design

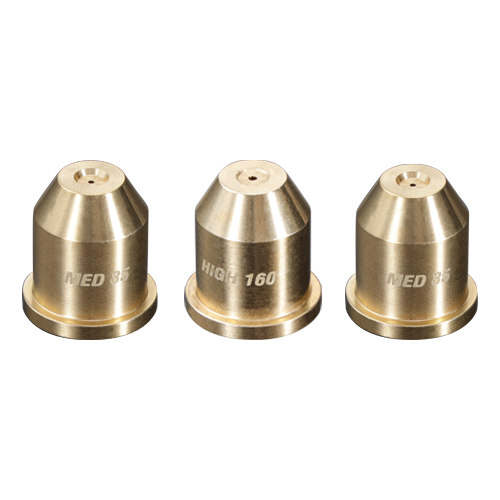

Nozzles available in stainless steel and brass
The low setting sprays 65 microns, the medium setting sprays 85 microns away and the high setting sprays 180 microns. It contains a hollow cone spray nozzle sat at 65 microns and 2 full cone nozzles set at 80 and 160 microns.
Ideal for use with water soluble disinfectants, cleaning solutions, deodorizers
Compatible with Backpack sprayers.


Performance Data：


Model Code	Spray angle (°)	Flow rate (ml/min)	Droplet size  (SMD, μm)	Spray distance (cm)
TX-1.5	80	120ml/min@6bar	65	150
TG-0.4	60	450ml/min@5bar	80	200
TG-1.0	60	850ml/min@4bar	160	300



Typical Application in Disinfection and Sterilization

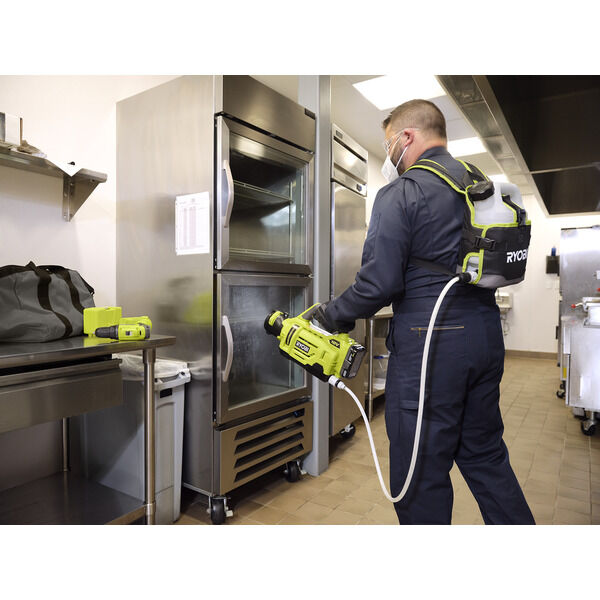

The nozzles mentioned above with different spray performance are specially machined according to designing idea of 3 in 1 sprayer. Together with the delicately designed selector, they can be compatible with hand-held sprayer or back pack sprayer for residential and commercial disinfection and sterilization. Different selection of nozzle with three types correspond to three different functional modes of the selector: Low, Medium, and High.


Mode Low

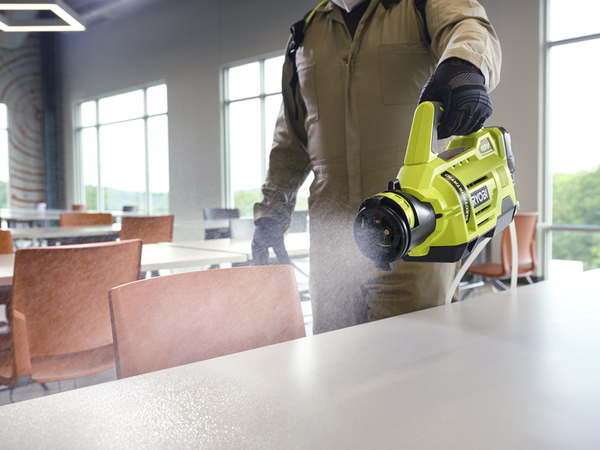

The TX-1.5 nozzle selected for this mode to produce 65 microns tiny fog with low flow rate. The soft mist has good dispersion and ability of adhesion, suitable for disinfection for indoor applications, such as home and office, etc.

Mode Medium

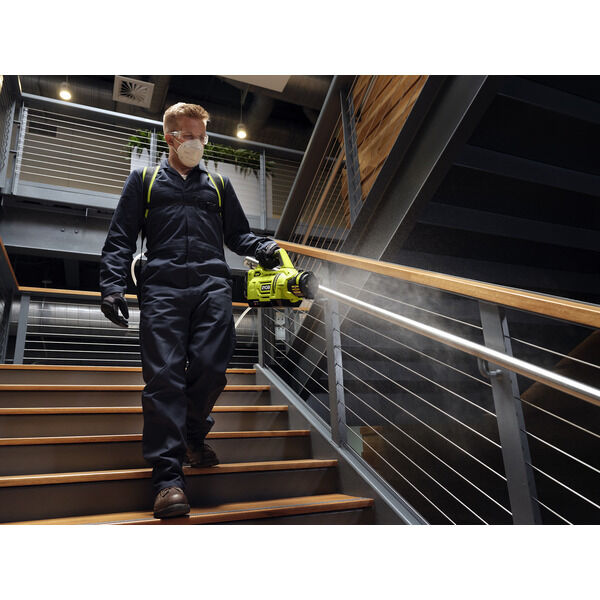

The TG-0.4 nozzle selected for this mode to produce 80 microns tiny mist with medium flow rate. The stronger mist has longer spray distance and bigger flow rate, therefore better wind resistance, suitable for disinfection for semi open areas, such as library, shopping mall, waiting hall, etc.

Mode High

The TG-1.0 nozzle selected for this mode to produce 160 microns coarse mist with relatively high flow rate. The strong mist has longest spray distance and biggest flow rate, therefore best wind resistance, suitable for disinfection or watering for outdoor applications.
