Pneumatic Air Atomizing Nozzles For Disinfection and Sterilization
Design Features:
1. Working mode:siphon/gravity; pressure
2. Spraying pattern:round spray
3. Spray angle:adjustable(can be customized)
4. Flow rate:adjustable(can be customized)
5. Inlet size : 1/4BSPP female
6. Droplet Size:20-50 um
7. Connect Size:1/8 FNPT, 1/4 FNPT and 1/2 FNPT etc
8. Material:stainless steel SS303, SS304,SS316
9. Made of stainless steel, strong and corrosion resistant.
9. Made of stainless steel, strong and corrosion resistant.
Notes: We are a professional manufacturer of spray nozzles. We produce and sell different types of nozzles for the industry, and we also provide customized types of spray nozzles. Factory price, High quality, Fast delivery.
The pneumatic air atomizing nozzles mainly used for sterimist disinfectant sprayer with the round spray pattern, pressure fed spray set-up and easy control of fog and fog stability.Features of Pneumatic Air Atomizing Nozzles
1. Air and liquid mix inside the nozzle and form a wide round spray
2. Air and liquid flow rates affect each other
3. Internal mix structure produce the finest atomization
Performance Data
Atomizing Nozzles Spray Setting Function
air atomizing, also known as pneumatic nozzles, pneumatic atomizing, or twin-fluid nozzles. Pneumatic nozzles are nozzles that spray a mixture of liquid and gas.
Either a pressure spray or a siphon spray can be used in each series
Each setting provides specific spray modes with specific capabilities and spray coverage performance.
The spray devices of each nozzle series are interchangeable
Round spray: lengthened full cone round spray
Wide Angle round spray: hollow cone, wide Angle round spray
Deflection surface spray: An extended surface that turns from the axis of the inlet connection or chip spray

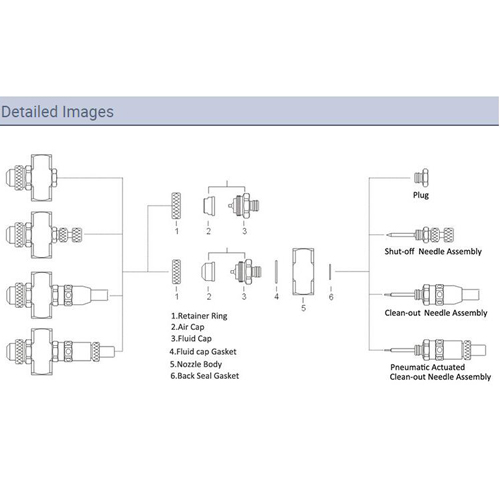

The spray device comprises an air cap and a fluid cap
1. Connection mode :2 minutes (1/4) internal thread connection, one end is connected with a pressure of 2-3 kg (0.2-0.3Mpa) and the other end is connected with a static liquid after the nozzle produces negative pressure, and the static liquid is sucked in for mixing and atomization.
2. Nozzle marking: nozzles have marking gas and LIQUID or marking AIR(AIR), Liquid (LIQUID).
3. Flow adjustment: there is an adjustment needle behind, you can adjust the size of the liquid flow.
4. Wall type installation aperture is 26.5-27mm, screw type installation aperture is 8.5-9mm.
Q1: Are you a manufacturer ?
A: Yes. We are an IS09001:2015 Certified factory with 10 yrs in nozzle manufacturing and design.
( 1 hour’s flight from Hongkong, 30 minute’s bus ride from Shenzhen / Guangzhou Airport )
Q2: How long is your delivery time, Packing & Shipping?
A: Delivery time:
(1).3 workdays for nozzles in stock.
(2).7-10 workdays for existing model but out of stock.
(3).15-25 workdays for casting models.
(4). Production Capacity: 10000pcs per day.
Packing & Shipping:
Packed in firm plastic box then inner box, master carton. Pallets or OEM packing available.
Shipped by FEDEX,DHL,TNT,UPS , Sea and Air transportation. 3-5 days delivered to the worldwide.
Q3: Do you provide free samples?
A: Yes, Free samples are available with bill shipping charges to receiver.
Q4: What is your payment terms?
A: T/T 100% in advance, or 30% deposit plus 70% balance before shipment.
Q5:Do you support customized nozzles?
A:Yes. We do.
We support customization and produce nozzles according to customers’ requirements.
Q6: Will my drawings be divulged to the third party if you put it into production?
A:No, It won’t .
we pay great attention to protecting our customers’ privacy of drawings. Signing NDA is also accepted if required.
Our advantage:
High quality products at competitive price
Fast delivery and customer-oriented service
Excellent ability to design or custom-tailor
Vast experience to guide the applications
