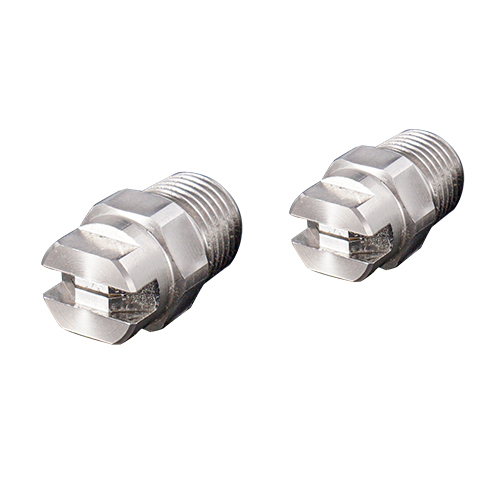

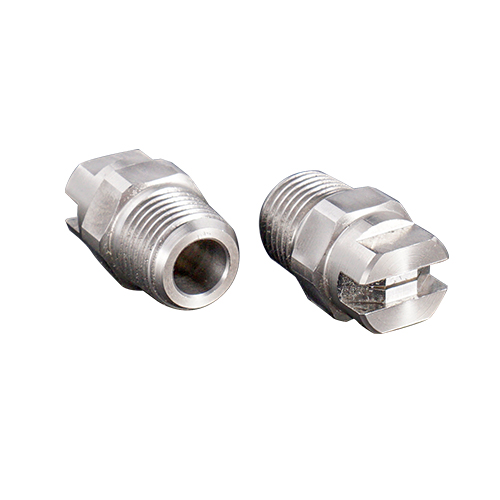

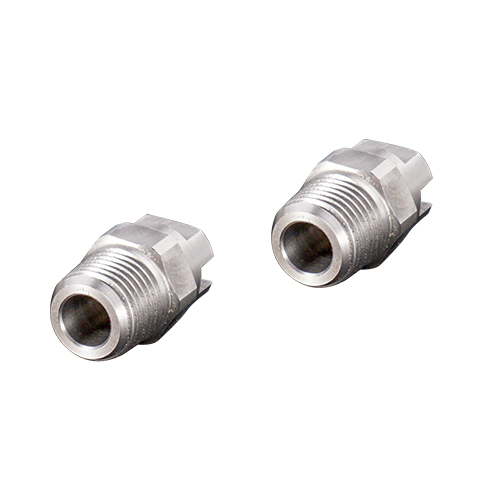

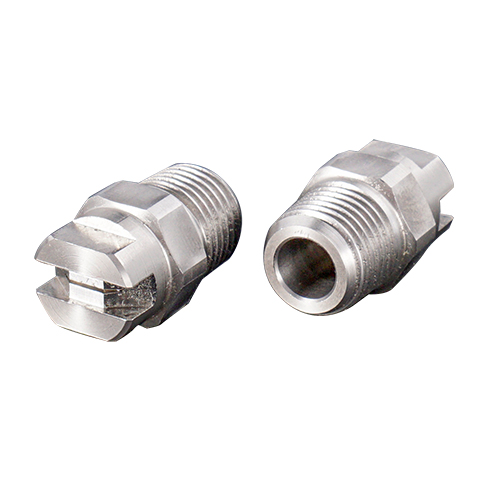

Small Capacity Flat Spray Nozzles for Disinfection and Steri
Reference: admin
Price: customized
Design Feature:
1. Very compact structurer design to produce a flat spray pattern2. Medium to big spray angle for a relatively large coverage
3. 0.13L/min to 0.7 L/min @ 3bar ~7bar pressures
4. 50 microns to 120 microns droplet size under working pressure
5. Stainless steel material for better corrosion resistance and long life
The flat fan spray nozzles have various choices in flow rate and spray angle. Most of flat fan spray nozzles are used for washing and cleaning applications due to the clear edge of the spray and concentration of the impact. But when the capacity of flat fan spray nozzle becomes small, the nozzles can produce small droplets even under low working pressures. In this case, the droplet size become tiny and spray become soft that make it a possible option for disinfection and sterilization. Because of the large coverage of flat fan nozzles and the flat fan spray pattern, they are very suitable for some disinfecting usage scenes.
Medium to big spray angle for a relatively large coverage
0.13L/min to 0.7 L/min @ 3bar ~7bar pressures
50 microns to 120 microns droplet size under working pressure
Stainless steel material for better corrosion resistance and long life
Spray distance is obtained in laboratory with spray angle 65 degree. For other spray angles, please contact our sales engineer for more information.
The flat fan spray nozzles can be designed as a sperate component for the sprayer, or together with the misting nozzles to form a 3 in 1 structure, just as shown below. Usually there is housing with quick connection for the nozzles for fast interchangeable operation to make it suitable for different usage scenarios.
For further request, please contact our sales engineer for more information.
Design Feature
Very compact structurer design to produce a flat spray patternMedium to big spray angle for a relatively large coverage
0.13L/min to 0.7 L/min @ 3bar ~7bar pressures
50 microns to 120 microns droplet size under working pressure
Stainless steel material for better corrosion resistance and long life

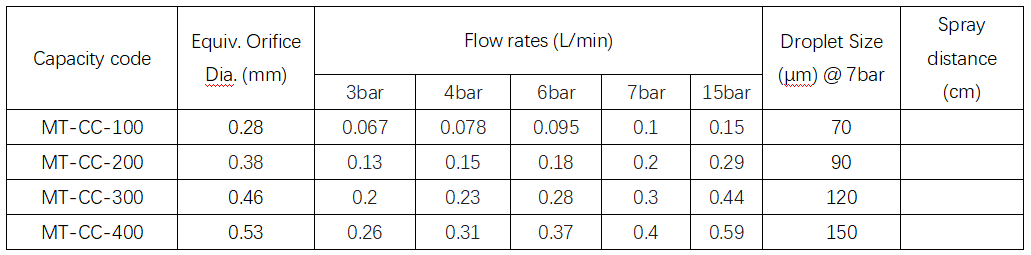

Performance Data
Spray distance is obtained in laboratory with spray angle 65 degree. For other spray angles, please contact our sales engineer for more information.
Typical Application in Disinfection and Sterilization

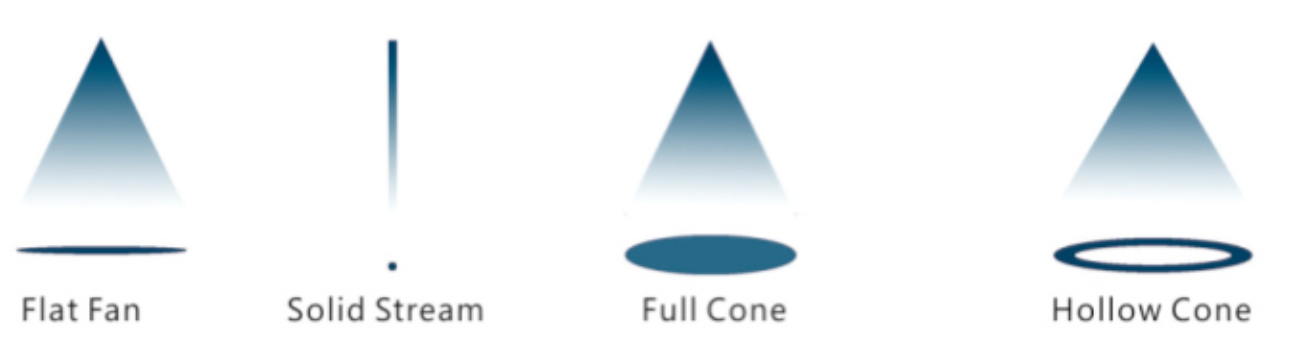

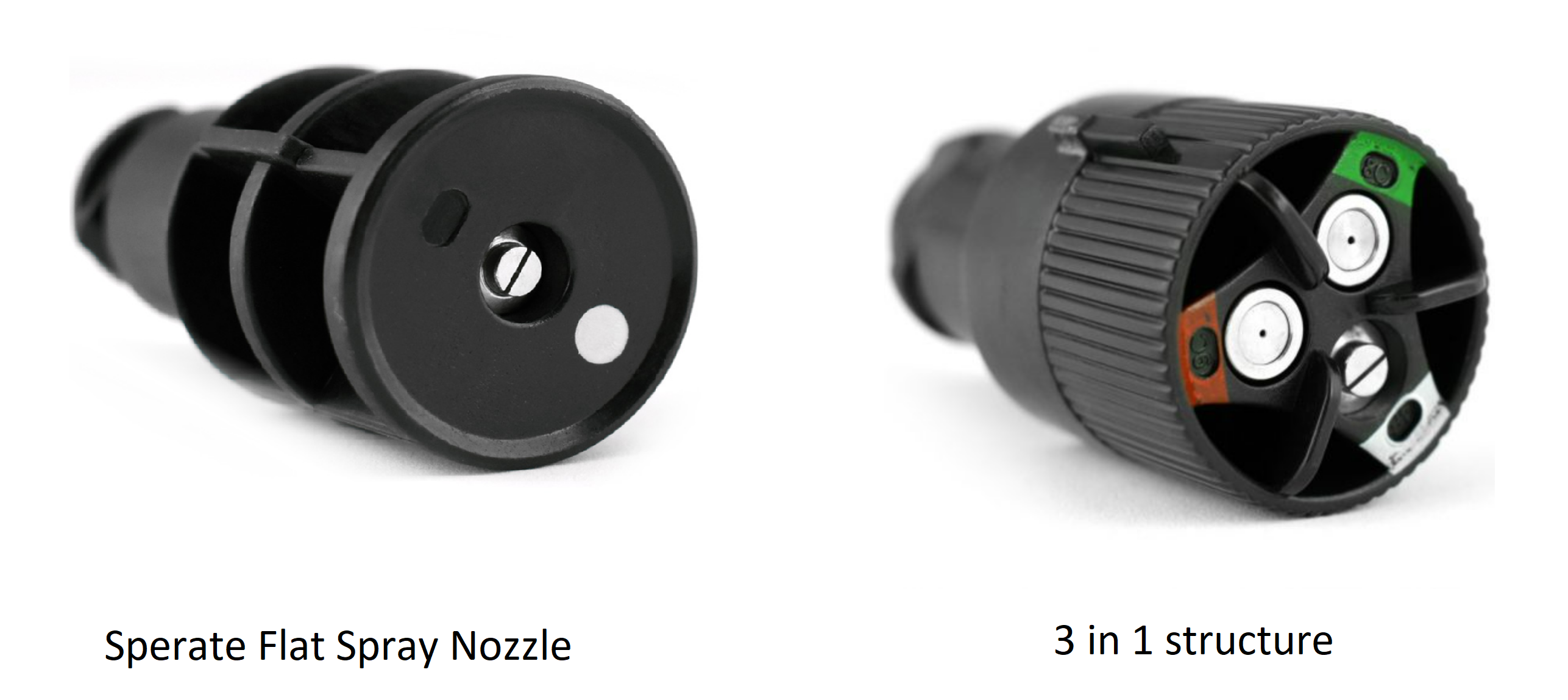

The small capacity flat spray nozzles are usually assembled on the sprayer for disinfectant spraying. Compared with the full cone or hollow cone spray pattern, the flat spray pattern can provide relatively large coverage of target objects, therefore a higher efficiency. The flat fan spray nozzles can be designed as a sperate component for the sprayer, or together with the misting nozzles to form a 3 in 1 structure, just as shown below. Usually there is housing with quick connection for the nozzles for fast interchangeable operation to make it suitable for different usage scenarios.
Connection methods

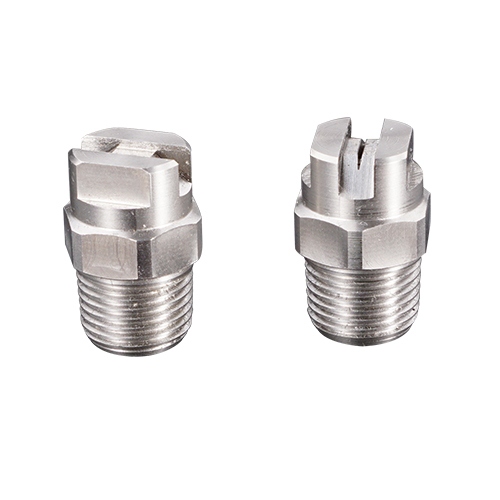

There are different connection methods for the flat nozzles to match different spray guns, according to customers’ design ideas. We have rich experience in tailor-made products to meet customer’s requirements.1. Thread connection
1/4 BSPT/NPT, 1/8 BSPT/NPT available
2. Quick connection with plastic housing
We are capable of designing the housing for customers, or produce the proper nozzles according to dimensions of the housing.For further request, please contact our sales engineer for more information.
